EP-DG8542

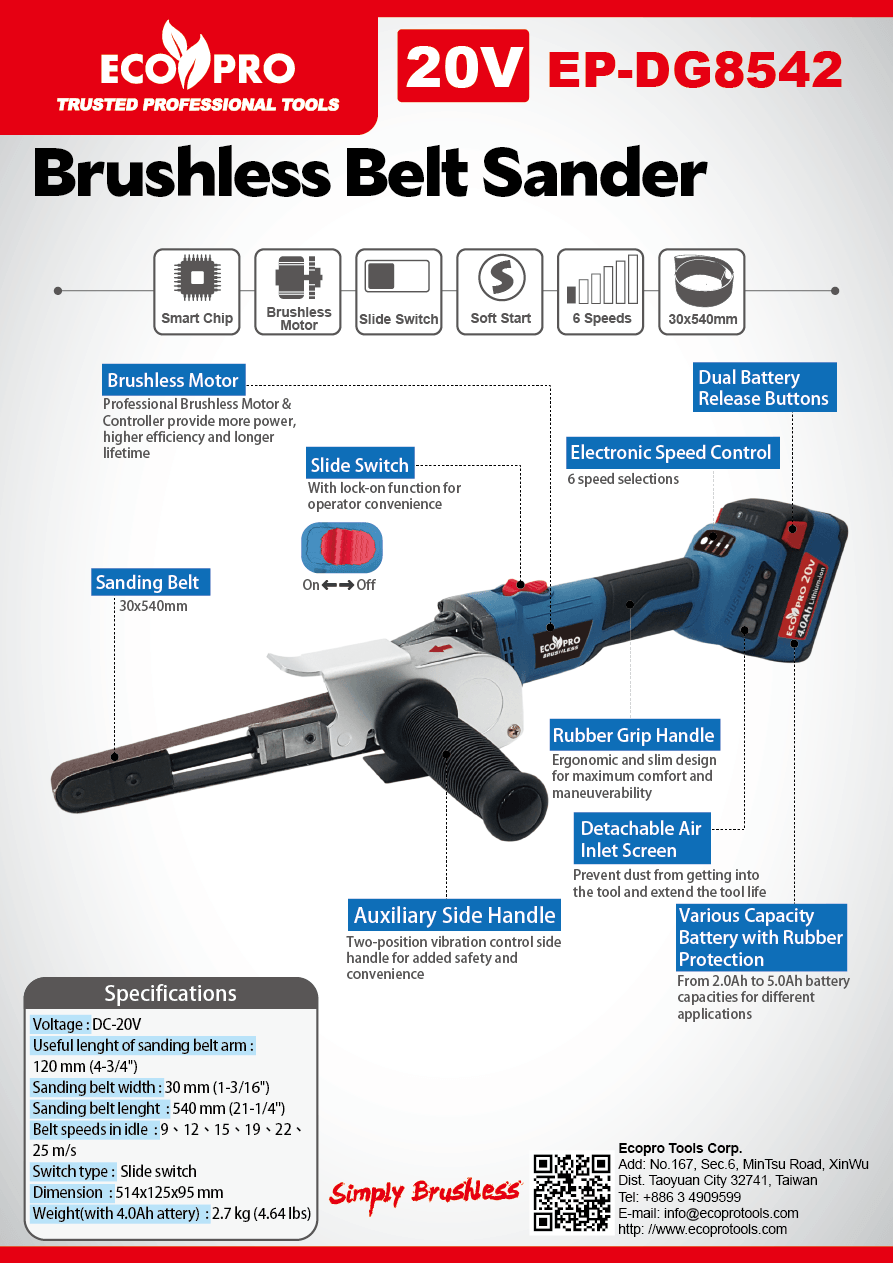

Product name : 20V Brushless Belt Sander (30x540mm)
Product No： EP-DG8542
Specification

  • Voltage : DC-20V
  • Useful lenght of sanding belt arm : 120 mm (4-3/4")
  • Sanding belt width : 30 mm (1-3/16")
  • Sanding belt lenght  : 540 mm (21-1/4")
  • Belt speeds in idle  : 9、12、15、19、22、25 m/s
  • Switch type :  Slide switch
  • Dimension  : 514x125x95 mm
  • Weight(with 4.0Ah attery) : 2.7 kg (4.64 lbs)

Features
  • Brushless EC motor, compact, more functions, longer run time, service free
  • Sanding head can be tilted for different positions
  • Vibration control auxiliary handle for better operation (for EP-DG8541 only)
  • 6-speed selection for different applications
  • Slide switch with lock-on function for operator convenience
  • Smooth start increases safety and comfort
  • Anti-restart design prevents accidental startup after power supply interruption
  • Removable dust screen prevents dust to get into motor
