EP-DG8530

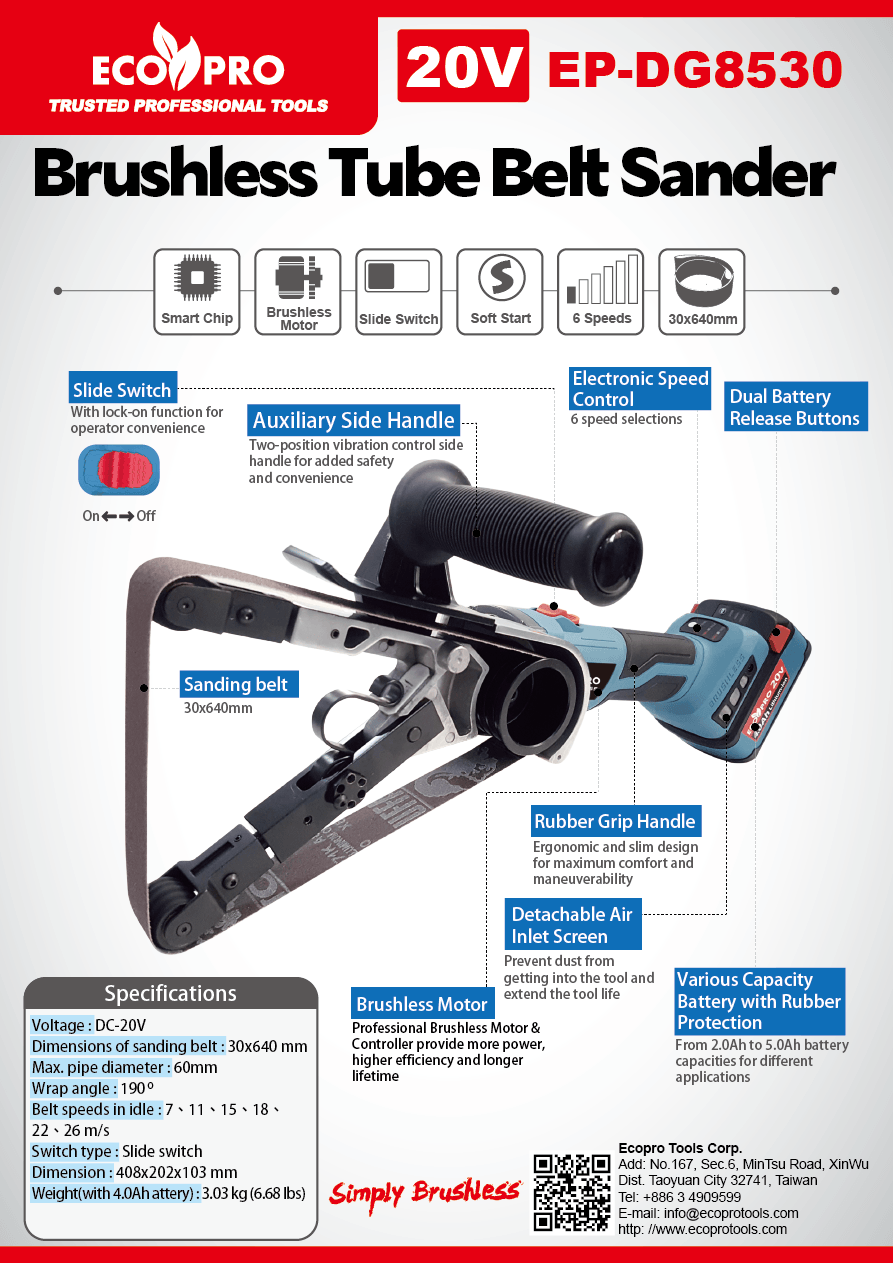

Product name : 20V Brushless Tube Belt Sander
Product No： EP-DG8530
Specification

  • Voltage : DC-20V
  • Dimensions of sanding belt : 30x640 mm
  • Max. pipe diameter : 60mm
  • Wrap angle : 190 ○
  • Belt speeds in idle : 7、11、15、18、22、26 m/s
  • Switch type : Slide switch
  • Dimension : 408x202x103 mm
  • Weight(with 4.0Ah attery) : 3.03 kg (6.68 lbs)

Features
  • Brushless EC motor, compact, more functions, longerrun time, service free
  • Vibration control auxiliary handle can be used on right or left
  • Sanding head can be tilted for different positions
  • 6-speed selection for different applications
  • Slide switch with lock-on function for operator convenience
  • Smooth start increases safety and comfort
  • Anti-restart design prevents accidental startup after power supply interruption
  • Removable dust screen prevents dust to get into motor
