EP-DG8503

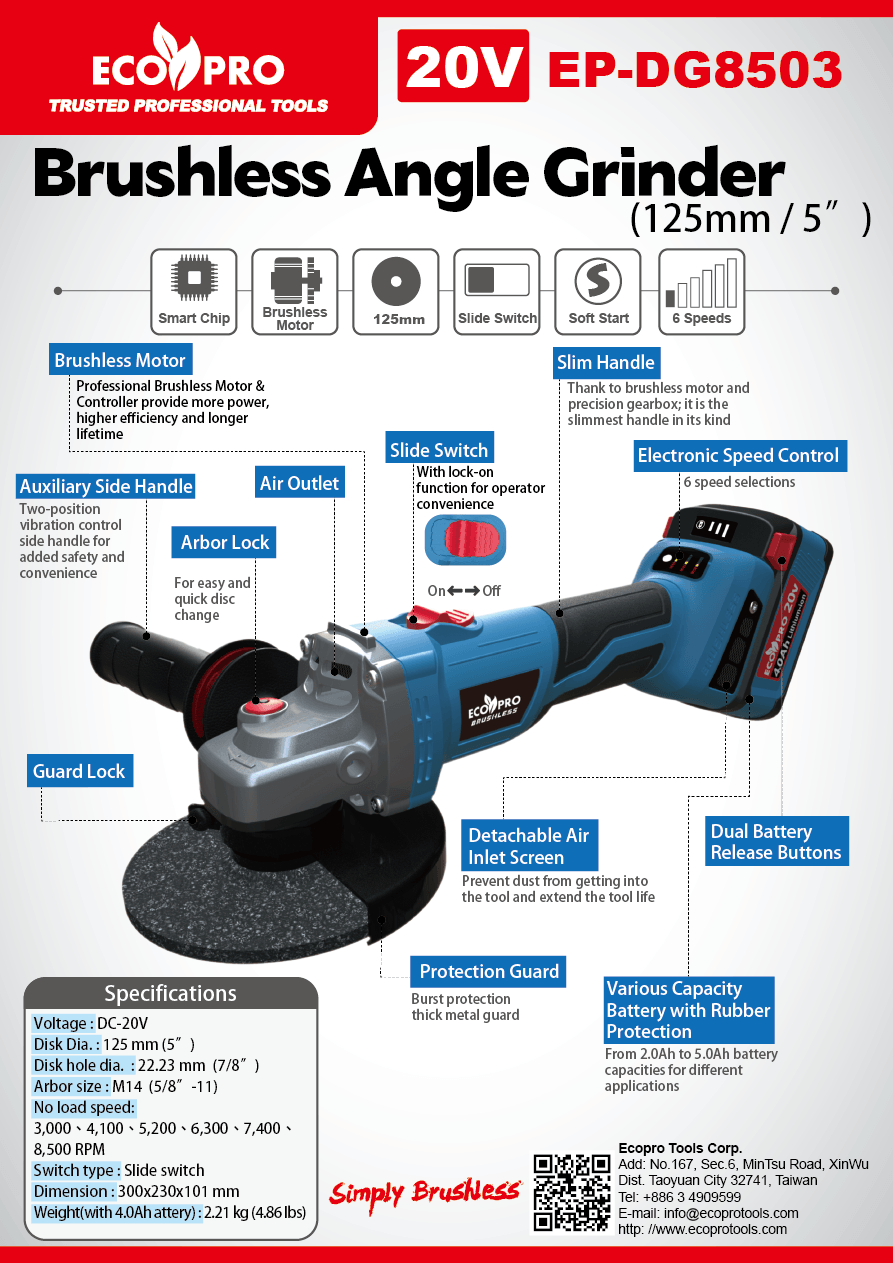

Product name : 20V Brushless Angle Grinder (125mm / 5”)
Product No： EP-DG8503
Specification

  • Voltage : DC-20V
  • Disk Dia. : 125 mm (5”)
  • Disk hole dia. : 22.23 mm (7/8”)
  • Arbor size : M14 (5/8”-11)
  • No load speed: 3,000、4,100、5,200、6,300、7,400、8,500 RPM
  • Switch type : Slide switch
  • 含4.0Ah電池重量：2.21 kg (4.86 lbs)

Features
  • Brushless EC motor, compact, more functions, longer run time, service free
  • Automatic speed & torque adjustment during operation
  • Electronic current limit design for overload protection
  • Tool free adjustment for protection guard
  • 6-speed selection for different applications
  • Vibration control auxiliary handle can be used on right or left
  • Slide switch with lock-on function for operator convenience
  • Vibration control side handle can be used on right or left
  • Smooth start increases safety and comfort
  • Anti-restart design prevents accidental startup after power supply interruption
  • Removable dust screen prevents dust to get into motor
